Getting Started with Loco

We use the loco_starter example as the base, it contains basic REST API to handle basic user management such as user registration, login and user info of current session.

1. Setup Admin Endpoint

We will extends the SeaORM entities in the example to define a GraphQL schema, handle GraphQL request and serve SeaORM Pro admin panel.

1.1 Download frontend assets

# Go to the root of `loco_starter` example
cd sea-orm/examples/loco_starter

# Create a directory for the static assets
mkdir assets

# Use the `download_frontend.sh` to download SeaORM Pro admin panel to `assets/admin` directory
curl "https://raw.githubusercontent.com/SeaQL/sea-orm-pro/refs/heads/main/build_tools/download_frontend.sh" -sSf | sh

1.2 Serve frontend via `static` middleware

Open Loco.rs config file, add static middlewares. The admin panel frontend is located in /assets/admin and we want to serve it under http://localhost:3000/admin, so we set the path as assets. Also, the admin panel frontend is a single page application, so we set a fallback route to the index file, ./assets/admin/index.html.

loco_starter/config/development.yaml
server:
  middlewares:
+   static:
+     enable: true
+     must_exist: true
+     precompressed: true
+     folder:
+       uri: /
+       path: assets
+     fallback: ./assets/admin/index.html

1.3 Setup admin API endpoint

The admin panel frontend is customizable and it read the configuration from the api/admin/config endpoint.

loco_starter/src/controllers/admin.rs
use loco_rs::prelude::*;

pub async fn config(State(_ctx): State<AppContext>) -> Result<Response> {
    format::json(serde_json::json!({
        "site": {
            "theme": {
                "title": "SeaORM Pro",
                "logo": "/admin/favicon.ico",
                "login_banner": "/admin/logo.png",
            }
        },
        "raw_tables": {},
        "composite_tables": {},
    }))
}

pub fn routes() -> Routes {
    Routes::new().prefix("admin").add("/config", get(config))
}

Use the admin controller and register the /api/admin route.

loco_starter/src/controllers/mod.rs
+ pub mod admin;
pub mod auth;
pub mod files;
pub mod notes;
pub mod user;

loco_starter/src/app.rs
pub struct App;

#[async_trait]
impl Hooks for App {
    fn routes(_ctx: &AppContext) -> AppRoutes {
        AppRoutes::with_default_routes()
            .prefix("/api")
            .add_route(controllers::notes::routes())
            .add_route(controllers::auth::routes())
            .add_route(controllers::user::routes())
            .add_route(controllers::files::routes())
+           .add_route(controllers::admin::routes())
    }
}

2. Setup GraphQL Endpoint

2.1 Define GraphQL schema

Add the dependencies for defining GraphQL schema: async-graphql, seaography and lazy_static.

loco_starter/Cargo.toml
[dependencies]
+ async-graphql = { version = "7.0", features = ["decimal", "chrono", "dataloader", "dynamic-schema"] }
+ seaography = { version = "1.1.0", features = ["with-decimal", "with-chrono", "with-uuid", "field-snake-case"] }
+ lazy_static = { version = "1.4" }

We need to define an RelatedEntity enum for each of the SeaORM entity to help seaography figure out the parent-child relation between entities.

loco_starter/src/models/_entities/files.rs
use sea_orm::entity::prelude::*;
use serde::{Deserialize, Serialize};

#[derive(Clone, Debug, PartialEq, DeriveEntityModel, Eq, Serialize, Deserialize)]
#[sea_orm(table_name = "files")]
pub struct Model {
    pub created_at: DateTime,
    pub updated_at: DateTime,
    #[sea_orm(primary_key)]
    pub id: i32,
    pub notes_id: i32,
    pub file_path: String,
}

#[derive(Copy, Clone, Debug, EnumIter, DeriveRelation)]
pub enum Relation {
    #[sea_orm(
        belongs_to = "super::notes::Entity",
        from = "Column::NotesId",
        to = "super::notes::Column::Id"
    )]
    Notes,
}

impl Related<super::notes::Entity> for Entity {
    fn to() -> RelationDef {
        Relation::Notes.def()
    }
}

+ #[derive(Copy, Clone, Debug, EnumIter, DeriveRelatedEntity)]
+ pub enum RelatedEntity {
+     #[sea_orm(entity = "super::notes::Entity")]
+     Notes,
+ }

We leave RelatedEntity enum empty for entity without any parent-child relation.

loco_starter/src/models/_entities/notes.rs
use sea_orm::entity::prelude::*;
use serde::{Deserialize, Serialize};

#[derive(Clone, Debug, PartialEq, DeriveEntityModel, Eq, Serialize, Deserialize)]
#[sea_orm(table_name = "notes")]
pub struct Model {
    pub created_at: DateTime,
    pub updated_at: DateTime,
    #[sea_orm(primary_key)]
    pub id: i32,
    pub title: Option<String>,
    pub content: Option<String>,
}

#[derive(Copy, Clone, Debug, EnumIter, DeriveRelation)]
pub enum Relation {}

+ #[derive(Copy, Clone, Debug, EnumIter, DeriveRelatedEntity)]
+ pub enum RelatedEntity {}

loco_starter/src/models/_entities/users.rs
use sea_orm::entity::prelude::*;
use serde::{Deserialize, Serialize};

#[derive(Clone, Debug, PartialEq, DeriveEntityModel, Eq, Serialize, Deserialize)]
#[sea_orm(table_name = "users")]
pub struct Model {
    pub created_at: DateTime,
    pub updated_at: DateTime,
    #[sea_orm(primary_key)]
    pub id: i32,
    #[sea_orm(unique)]
    pub pid: Uuid,
    #[sea_orm(unique)]
    pub email: String,
    pub password: String,
    #[sea_orm(unique)]
    pub api_key: String,
    pub name: String,
    pub reset_token: Option<String>,
    pub reset_sent_at: Option<DateTime>,
    pub email_verification_token: Option<String>,
    pub email_verification_sent_at: Option<DateTime>,
    pub email_verified_at: Option<DateTime>,
}

#[derive(Copy, Clone, Debug, EnumIter, DeriveRelation)]
pub enum Relation {}

+ #[derive(Copy, Clone, Debug, EnumIter, DeriveRelatedEntity)]
+ pub enum RelatedEntity {}

Use seaography::register_entity_modules! macros to define register_entity_modules boilerplate function.

loco_starter/src/models/_entities/mod.rs
pub mod prelude;

pub mod files;
pub mod notes;
pub mod users;

+ seaography::register_entity_modules!([
+     files,
+     notes,
+     users,
+ ]);

Defining the GraphQL schema.

loco_starter/src/graphql/query_root.rs
use async_graphql::dynamic::*;
use sea_orm::DatabaseConnection;
use seaography::{Builder, BuilderContext};

lazy_static::lazy_static! {
    static ref CONTEXT: BuilderContext = BuilderContext::default();
}

pub fn schema(
    database: DatabaseConnection,
    depth: Option<usize>,
    complexity: Option<usize>,
) -> Result<Schema, SchemaError> {
    // Construct GraphQL schema
    let builder = Builder::new(&CONTEXT, database.clone());
    let builder = crate::models::_entities::register_entity_modules(builder);
    let schema = builder.schema_builder();
    // Maximum depth of the constructed query
    let schema = if let Some(depth) = depth {
        schema.limit_depth(depth)
    } else {
        schema
    };
    // Maximum complexity of the constructed query
    let schema = if let Some(complexity) = complexity {
        schema.limit_complexity(complexity)
    } else {
        schema
    };
    // GraphQL schema with database connection
    schema.data(database).finish()
}

Use the GraphQL schema module.

loco_starter/src/graphql/mod.rs
pub mod query_root;

loco_starter/src/lib.rs
pub mod app;
pub mod controllers;
pub mod mailers;
pub mod models;
pub mod tasks;
pub mod views;
pub mod workers;
+ pub mod graphql;

2.2 Setup GraphQL playground and query root

Add dependencies for serving GraphQL playground and handling GraphQL request.

loco_starter/Cargo.toml
[dependencies]
async-graphql = { version = "7.0", features = ["decimal", "chrono", "dataloader", "dynamic-schema"] }
+ async-graphql-axum = { version = "7.0" }
+ tower-service = { version = "0.3" }
seaography = { version = "1.1.0", features = ["with-decimal", "with-chrono", "with-uuid", "field-snake-case"] }
lazy_static = { version = "1.4" }

The GraphQL controller.

loco_starter/src/controllers/graphql.rs
use async_graphql::http::{playground_source, GraphQLPlaygroundConfig};
use axum::{body::Body, extract::Request};
use loco_rs::prelude::*;
use tower_service::Service;

use crate::graphql::query_root;

async fn graphql_playground() -> Result<Response> {
    // Setup GraphQL playground web and specify the endpoint for GraphQL resolver
    let res = playground_source(GraphQLPlaygroundConfig::new("/api/graphql"));

    Ok(Response::new(res.into()))
}

async fn graphql_handler(
    _auth: auth::JWT,
    State(ctx): State<AppContext>,
    req: Request<Body>,
) -> Result<Response> {
    // Maximum depth of the constructed query
    const DEPTH: Option<usize> = None;
    // Maximum complexity of the constructed query
    const COMPLEXITY: Option<usize> = None;
    // GraphQL schema
    let schema = query_root::schema(ctx.db.clone(), DEPTH, COMPLEXITY).unwrap();
    // GraphQL handler
    let mut graphql_handler = async_graphql_axum::GraphQL::new(schema);
    let res = graphql_handler.call(req).await.unwrap();

    Ok(res)
}

pub fn routes() -> Routes {
    Routes::new()
        // GraphQL route prefix
        .prefix("graphql")
        // Serving the GraphQL playground web
        .add("/", get(graphql_playground))
        // Handling GraphQL request
        .add("/", post(graphql_handler))
}

Use the GraphQL controller and register the /api/graphql route.

loco_starter/src/controllers/mod.rs
pub mod admin;
pub mod auth;
pub mod files;
+ pub mod graphql;
pub mod notes;
pub mod user;

loco_starter/src/app.rs
pub struct App;

#[async_trait]
impl Hooks for App {
    fn routes(_ctx: &AppContext) -> AppRoutes {
        AppRoutes::with_default_routes()
            .prefix("/api")
            .add_route(controllers::notes::routes())
            .add_route(controllers::auth::routes())
            .add_route(controllers::user::routes())
            .add_route(controllers::files::routes())
            .add_route(controllers::admin::routes())
+           .add_route(controllers::graphql::routes())
    }
}

3. Launch!

$ cargo run start

   Compiling loco_starter v0.1.0 (sea-orm/examples/loco_starter)
    Finished `dev` profile [unoptimized + debuginfo] target(s) in 9.75s
     Running `target/debug/loco_starter-cli start`
2025-01-03T08:48:32.340545Z  INFO app: loco_rs::config: loading environment from selected_path="config/development.yaml" environment=development
2025-01-03T08:48:32.434077Z  INFO app: loco_rs::db: auto migrating environment=development
2025-01-03T08:48:32.437428Z  INFO app: sea_orm_migration::migrator: Applying all pending migrations environment=development
2025-01-03T08:48:32.443216Z  INFO app: sea_orm_migration::migrator: No pending migrations environment=development
2025-01-03T08:48:32.470297Z  INFO app: loco_rs::controller::app_routes: [GET] /api/_ping environment=development
2025-01-03T08:48:32.470403Z  INFO app: loco_rs::controller::app_routes: [GET] /api/_health environment=development
2025-01-03T08:48:32.470470Z  INFO app: loco_rs::controller::app_routes: [GET] /api/notes environment=development
2025-01-03T08:48:32.470520Z  INFO app: loco_rs::controller::app_routes: [POST] /api/notes environment=development
2025-01-03T08:48:32.470586Z  INFO app: loco_rs::controller::app_routes: [GET] /api/notes/:id environment=development
2025-01-03T08:48:32.470644Z  INFO app: loco_rs::controller::app_routes: [DELETE] /api/notes/:id environment=development
2025-01-03T08:48:32.470691Z  INFO app: loco_rs::controller::app_routes: [POST] /api/notes/:id environment=development
2025-01-03T08:48:32.470734Z  INFO app: loco_rs::controller::app_routes: [POST] /api/auth/register environment=development
2025-01-03T08:48:32.470778Z  INFO app: loco_rs::controller::app_routes: [POST] /api/auth/verify environment=development
2025-01-03T08:48:32.470824Z  INFO app: loco_rs::controller::app_routes: [POST] /api/auth/login environment=development
2025-01-03T08:48:32.470880Z  INFO app: loco_rs::controller::app_routes: [POST] /api/auth/forgot environment=development
2025-01-03T08:48:32.470946Z  INFO app: loco_rs::controller::app_routes: [POST] /api/auth/reset environment=development
2025-01-03T08:48:32.470996Z  INFO app: loco_rs::controller::app_routes: [GET] /api/user/current environment=development
2025-01-03T08:48:32.471041Z  INFO app: loco_rs::controller::app_routes: [POST] /api/files/upload/:notes_id environment=development
2025-01-03T08:48:32.471090Z  INFO app: loco_rs::controller::app_routes: [GET] /api/files/list/:notes_id environment=development
2025-01-03T08:48:32.471144Z  INFO app: loco_rs::controller::app_routes: [GET] /api/files/view/:files_id environment=development
2025-01-03T08:48:32.471195Z  INFO app: loco_rs::controller::app_routes: [GET] /api/admin/config environment=development
2025-01-03T08:48:32.471239Z  INFO app: loco_rs::controller::app_routes: [GET] /api/graphql environment=development
2025-01-03T08:48:32.471319Z  INFO app: loco_rs::controller::app_routes: [POST] /api/graphql environment=development
2025-01-03T08:48:32.472125Z  INFO app: loco_rs::controller::app_routes: [Middleware] Adding static environment=development
2025-01-03T08:48:32.472208Z  INFO app: loco_rs::controller::app_routes: [Middleware] Enable precompressed static assets environment=development

                      ▄     ▀
                                 ▀  ▄
                  ▄       ▀     ▄  ▄ ▄▀
                                    ▄ ▀▄▄
                        ▄     ▀    ▀  ▀▄▀█▄
                                          ▀█▄
▄▄▄▄▄▄▄  ▄▄▄▄▄▄▄▄▄   ▄▄▄▄▄▄▄▄▄▄▄ ▄▄▄▄▄▄▄▄▄ ▀▀█
 ██████  █████   ███ █████   ███ █████   ███ ▀█
 ██████  █████   ███ █████   ▀▀▀ █████   ███ ▄█▄
 ██████  █████   ███ █████       █████   ███ ████▄
 ██████  █████   ███ █████   ▄▄▄ █████   ███ █████
 ██████  █████   ███  ████   ███ █████   ███ ████▀
   ▀▀▀██▄ ▀▀▀▀▀▀▀▀▀▀  ▀▀▀▀▀▀▀▀▀▀  ▀▀▀▀▀▀▀▀▀▀ ██▀
       ▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀
                https://loco.rs

environment: development
   database: automigrate
     logger: debug
compilation: debug
      modes: server

listening on localhost:3000

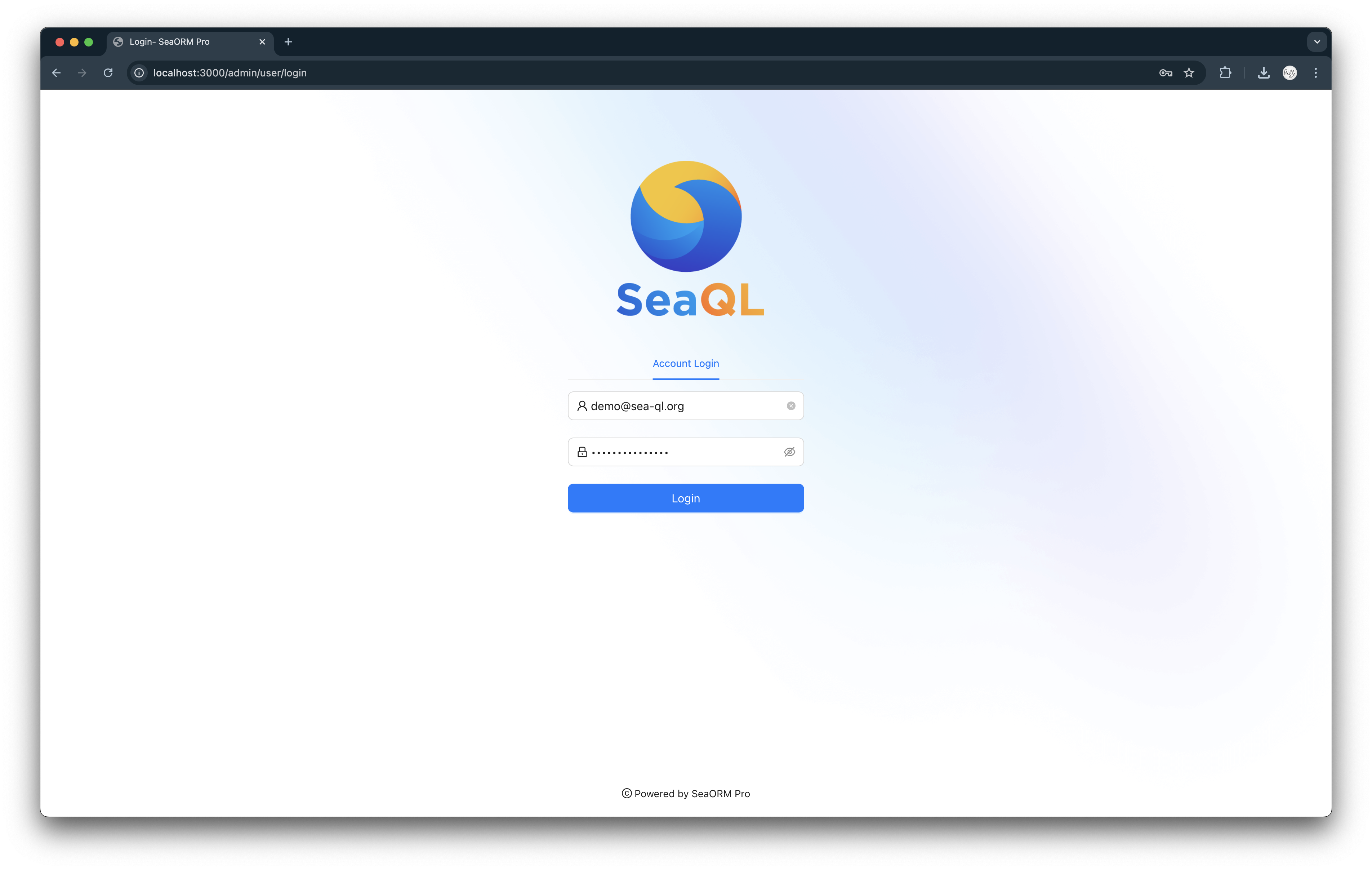

Visit http://localhost:3000/admin and login with your registered user.

Username: demo@sea-ql.org
Password: demo@sea-ql.org
