Table

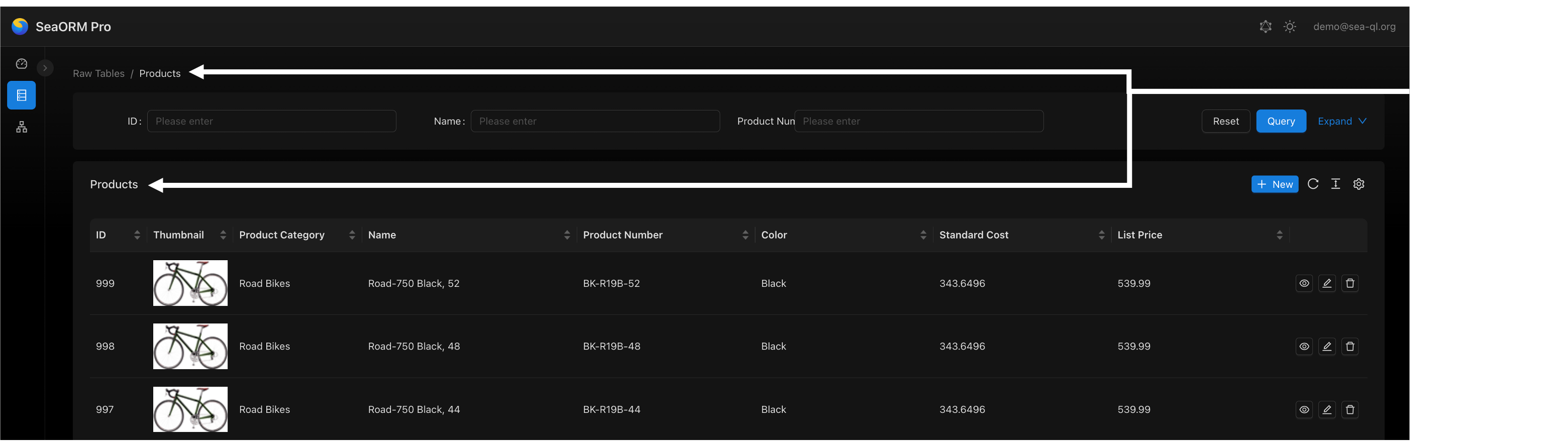

Table Layout

By default, name of the TOML file in title case will be displayed as the title, can be override.

pro_admin/raw_tables/product.toml

[table]
title = "Products"

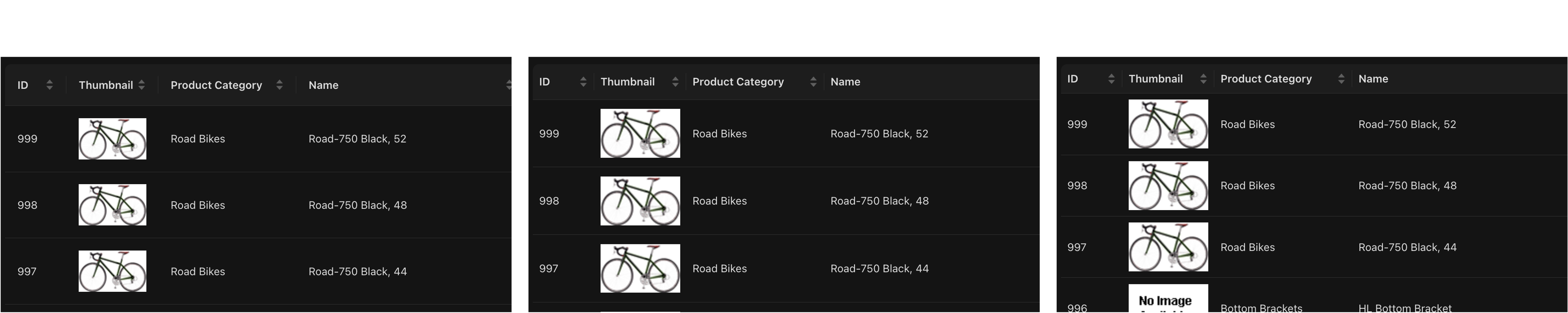

Display density of the table rows and number of rows on each page.

pro_admin/raw_tables/product.toml

[table]
# Available options: "large" / "middle" / "small"
table_size = "middle"
page_size = 30

Sort table by any column in "asc" or "desc" order.

pro_admin/raw_tables/product.toml

[table]
order_by = { field = "product_id", order = "desc" }

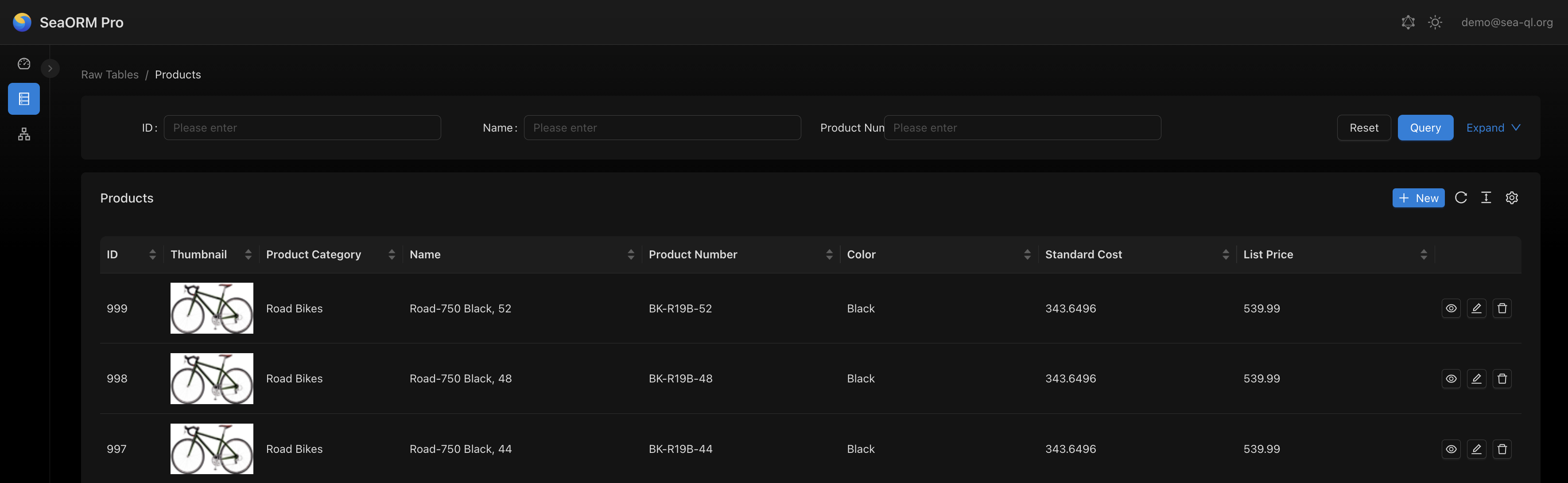

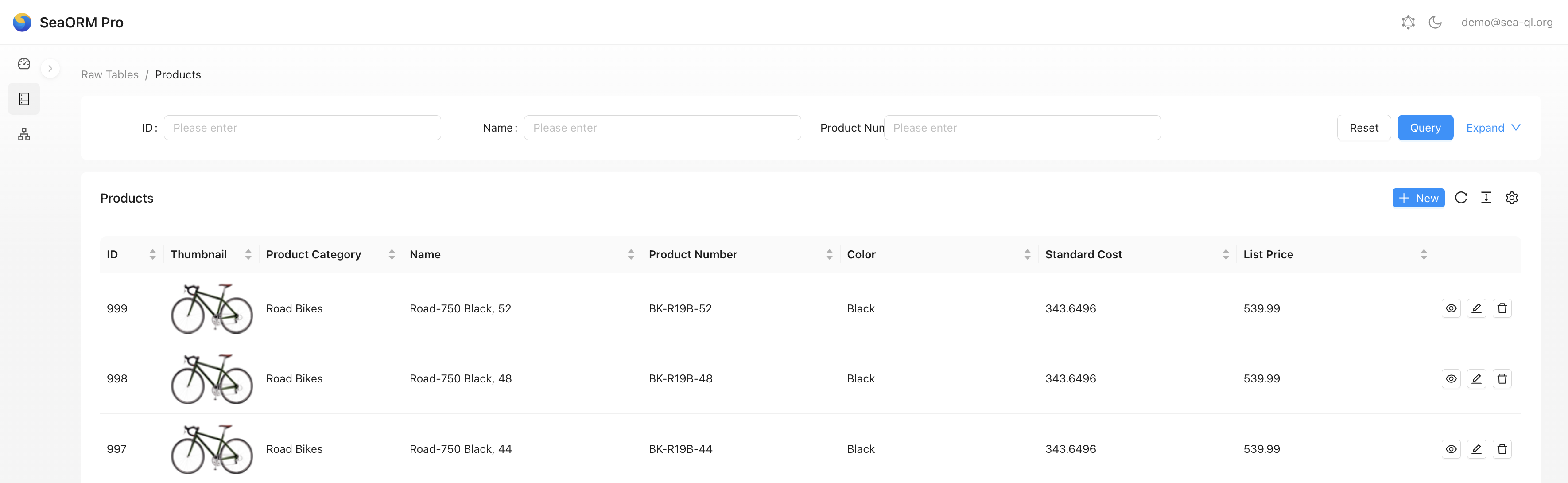

Table Columns

By default, the all_columns is turned on, meaning all columns will be shown, you can override this in the config.

The sequence of item in which the columns array is the same as the table displayed in the admin panel.

The title is optional, if it's not set it will use the title case of the field as the title.

Set input_type to render column data in custom renderer.

Field of the one-to-one relation can be displayed via providing the name of the SeaORM relation and the field of the related table.

pro_admin/raw_tables/product.toml

[table]
columns = [
    { title = "ID", field = "product_id", width = 80 },
    { title = "Thumbnail", field = "thumb_nail_photo", input_type = "image", width = 120 },
    { title = "Product Category", field = "name", relation = "product_category", ellipsis = false, width = 180 },
    # ...
]
hidden_columns = [
    "size",
    "weight",
]
all_columns = false

Full Spec

pro_admin/raw_tables/product.toml

[table]
# Title on the table header
title = "Products"
# Display density of the table view
# Available options: "large" / "middle" / "small"
table_size = "middle"
# Number of rows on each page
page_size = 30
# Default table sorter
order_by = {
    # Order by which column
    field = "product_id",
    # Order by direction: "asc" / "desc"
    order = "desc",
}
# Display following columns in sequence from left to right in the table view
columns = [
    {
        # Display title
        title = "ID",

        # Name of the SQL column
        field = "product_id",

        # Column width
        width = 80
    },
    {
        title = "Thumbnail",

        field = "thumb_nail_photo",

        # Data type
        input_type = "image",

        width = 120
    },
    {
        title = "Product Category",

        field = "name",

        # Name of the SeaORM relation
        relation = "product_category",

        # Clip long text
        ellipsis = false,

        width = 180
    },
]
# Hide columns in the table view
hidden_columns = [
    "size",
    "weight",
]
# Display all columns that are not included in `columns`, this is on by default
all_columns = false
